Application：

　　With TC132 cleaner technology licensed by Andritz-Ahlstrom, ZSC62(TC132) series centrifugal cleaner features excellent cleaning efficiency and minimum fiber loss. It is applied extensively in the approach system of paper machine, pulping and deinking system of recycles paper. It can remove hot melt materials, ink particles, fiber lump, fine and geometric-shaped light and heavy impurities from paper stock effectively. It can produce pulp for high quality paper without over-standard stain and dirt contents.

　　Design Features:

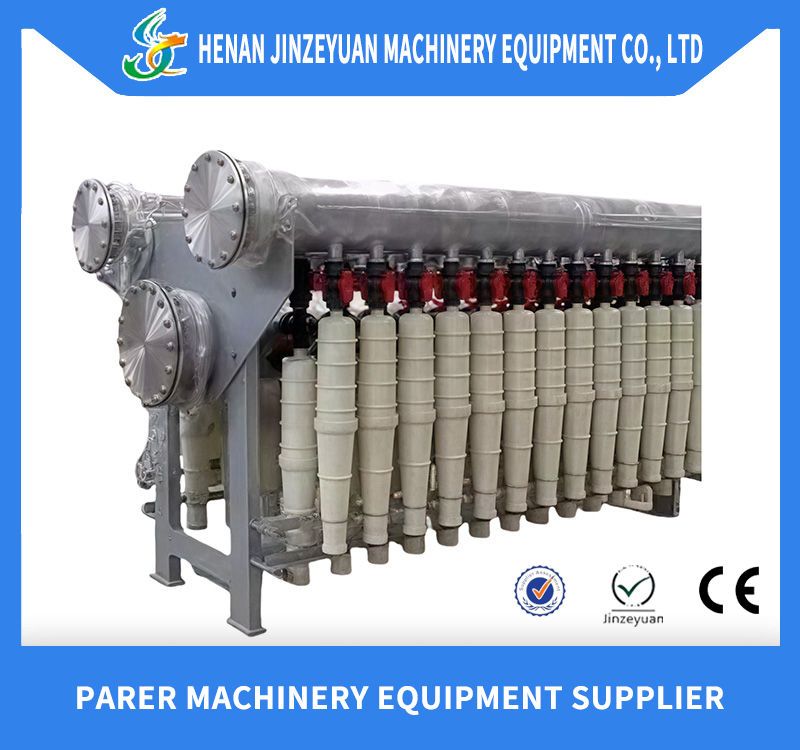

　　ZSC62(TC132) series centrifugal cleaner consists of cleaner unit, reject cone inlet and outlet pipe,reject pipe and support frame,etc.

　　The stock flows from inlet pipe under pressure(keeping the nominal pressure difference Pmin = 130KPa) into the cleaner. The stock jet generates vortex in the cleaner unit. Stock consistency , pressure difference and reject ratio can be adjusted coordinately foe a maximum cleaning efficiency and optimal performance as well as reduce fiber loss to a minimum.

　　With special stock flow designed for high efficiency in centrifugal cleaning performance, the cleaner units are assembled in parallel and arranged upwardly and vertically, which results in excellent performance in operation and convenience in installation and maintenance.

　　When working at its nominal pressure difference or slightly higher cleaning efficiency with the lowest wear out. With OK - shaped reject cone in fiber recovery stage, it reduces the fiber loss to a minimum. With its module design, it is compact with less space required. And the capacity can be adjusted by combining one or several standard cleaner units.

　　Main Performance Parameter:

　　Throughput: 2×6.5dm³/s=13dm³/s (780L/min)

　　Nominal Pressure Difference: 130 KPa
