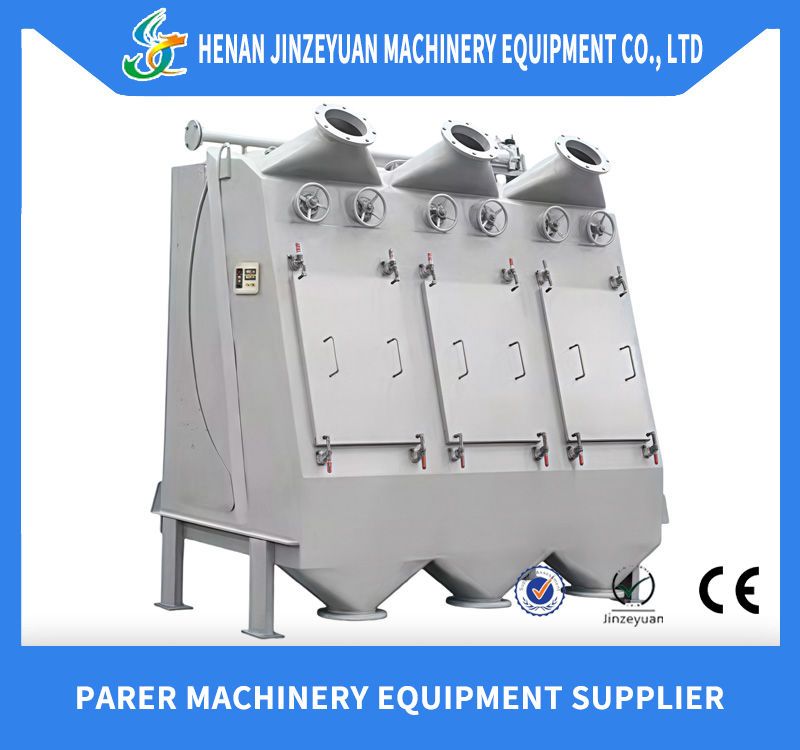

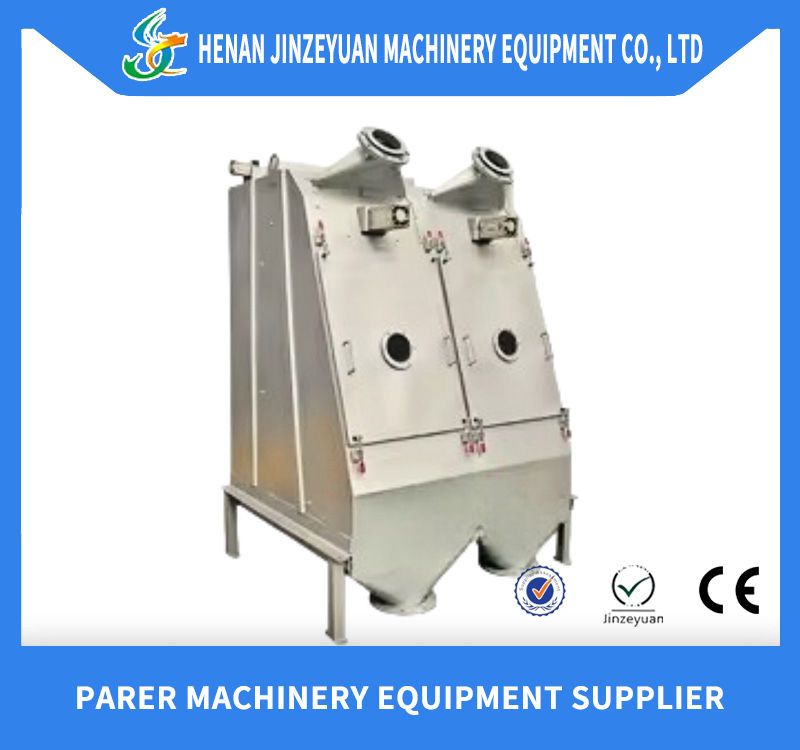

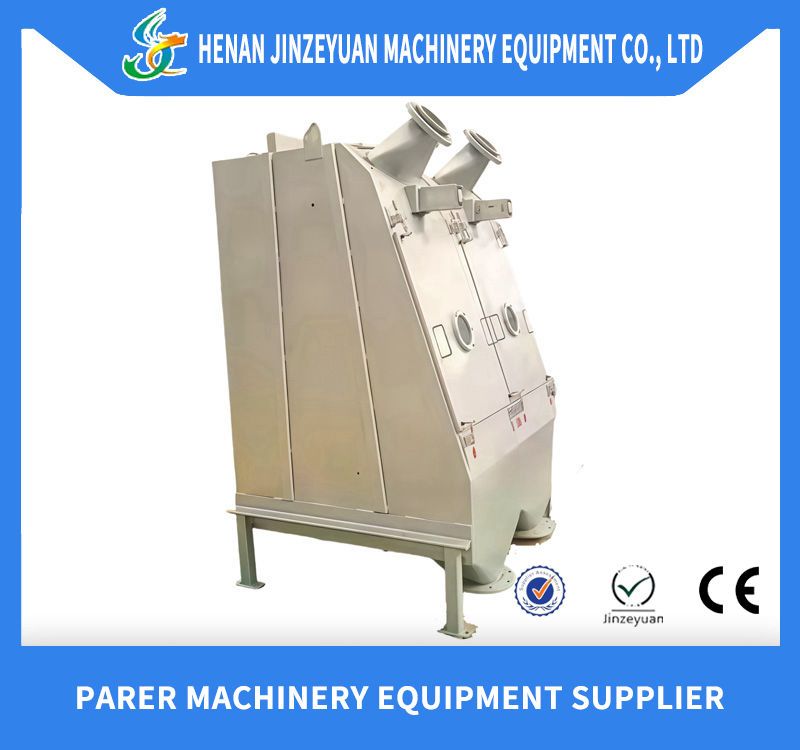

HS Series Bow Screen

DESCRIPTION：

　　Application:　　Bow Screen is used for fiber recovery from white water in the pr

RECOMMEND：

ORDER



TEL：+8613783914561

PRODUCT SERIES

Full set of paper machine equipment production line Main accessories of paper machine Paper machine accessories Pulp division equipment Wearing parts Boiler Corrugated paper machine Kraft paper machine Cultural paper machine Toilet paper machine Pulping Equipment GRM Series H.C. Refiner Deinking Equipment Disperser Equipment Cleaner Equipment Equipment of Approach System Bleaching Equipment Fiber Recovery Machine Reject Handling Equipment Screen Equipment Thickener and Washer Equipment

INTRODUCTION ORDER CASE

　　Application:

　　Bow Screen is used for fiber recovery from white water in the process of paper & pulp making. Without rotation and vibration parts, the bow screen works without motor and it is simple and reliable in operation.

　　Design Features:

　　Adopting upflow feeding structure design with pressure injection, liquid material is sprayed onto the curved plate in a tangential direction through a feed box with adjustable lip plate, the jet power pushes material forward through the surface of the curved plate. Depending on the jet power and gravity, the liquid and the fine particles pass through the gap of the screen plate, then aggregated to the filtrate outlet. The solids which can not be screened through the screen slots will be blocked by screen plate and flow to the discharge outlet along the direction of the material flow so the solid-liquid separation can be achieved.
