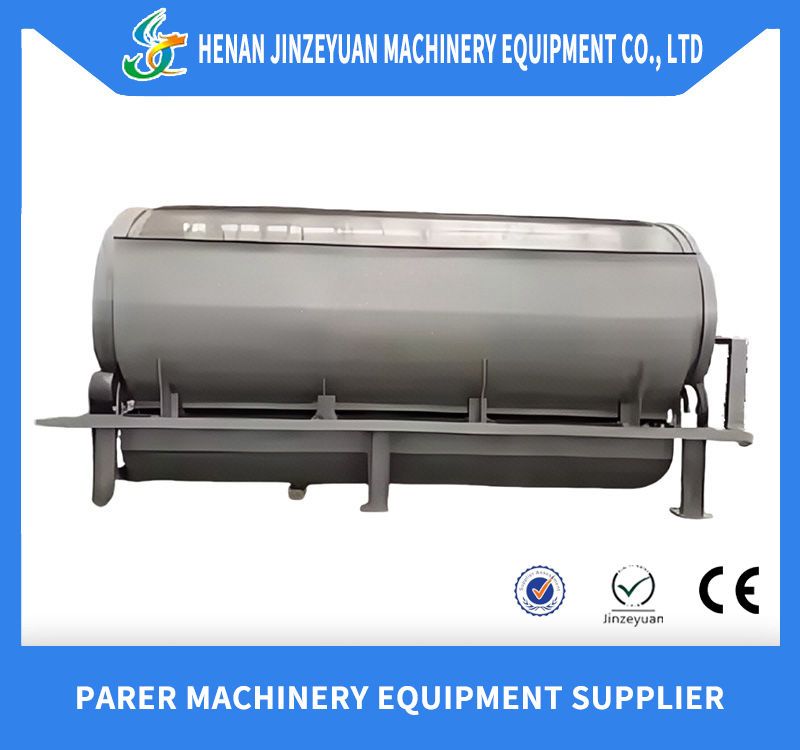

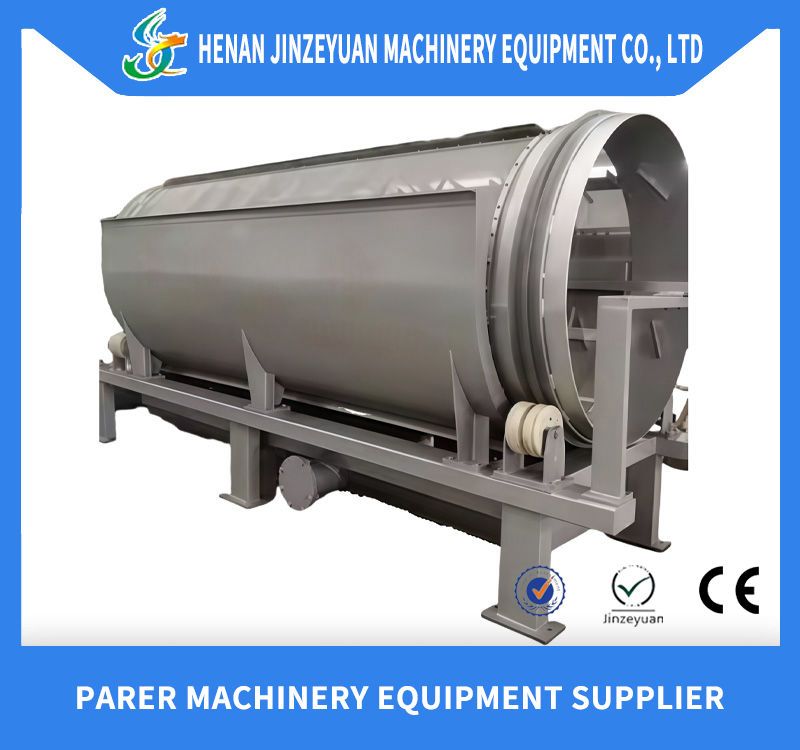

ZWL Series Micro-Filter

DESCRIPTION：

　　Application:　　It is used for separating solid and liquid for suspended solids,

RECOMMEND：

ORDER



TEL：+8613783914561

PRODUCT SERIES

Full set of paper machine equipment production line Main accessories of paper machine Paper machine accessories Pulp division equipment Wearing parts Boiler Corrugated paper machine Kraft paper machine Cultural paper machine Toilet paper machine Pulping Equipment GRM Series H.C. Refiner Deinking Equipment Disperser Equipment Cleaner Equipment Equipment of Approach System Bleaching Equipment Fiber Recovery Machine Reject Handling Equipment Screen Equipment Thickener and Washer Equipment

INTRODUCTION ORDER CASE

　　Application:

　　It is used for separating solid and liquid for suspended solids, such as paper-making, spinning and printing, especial recycling fiber from white water of paper-making.

　　Design Features:

　　Micro-Filter is one filtering device, it is included drive unit, overflow weir water machine, flushing water unit and wire,etc.

　　The sludge flow into the overflow weir water machine from water inlet, and distributing on the reverse rotating wire of filter drum uniformly after the sludge stable. The solid be separated since the shear effective between water flow and filter, it flow down with screw direction and reject form another side of drum. The SS and COD removal is high. The SS removal can be 70-80% and COD can be 35-50% when in the certain consistency.
