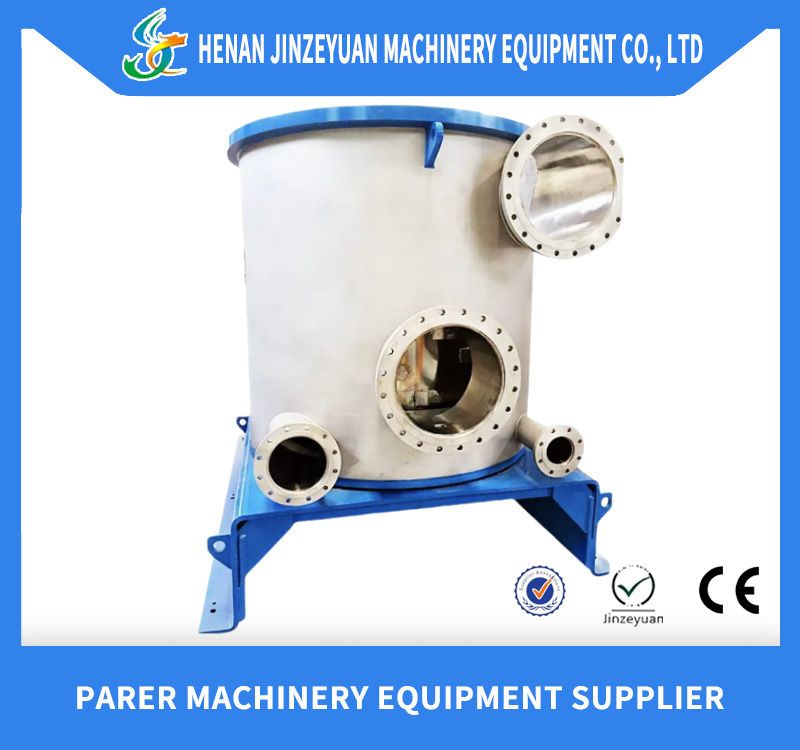

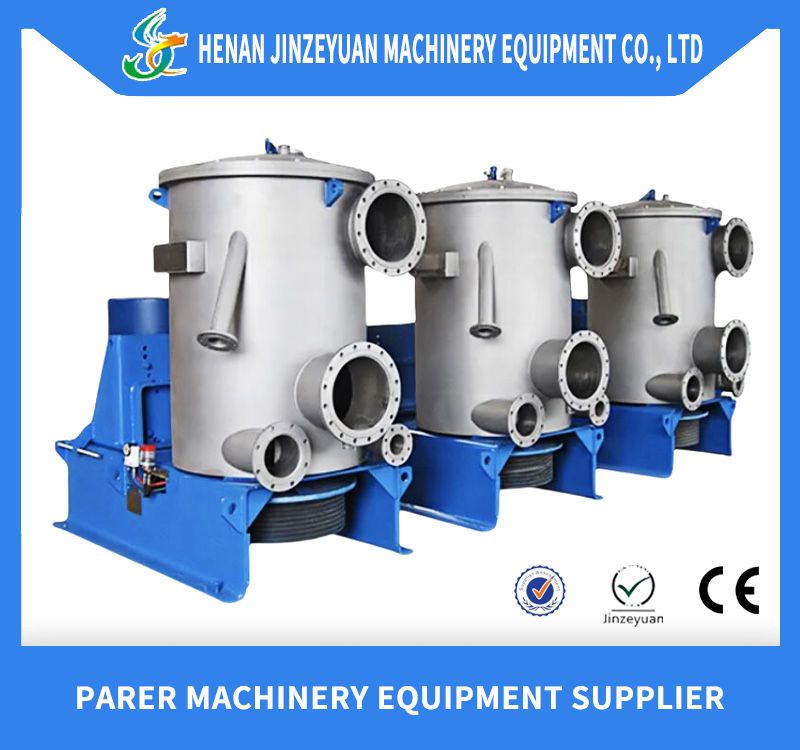

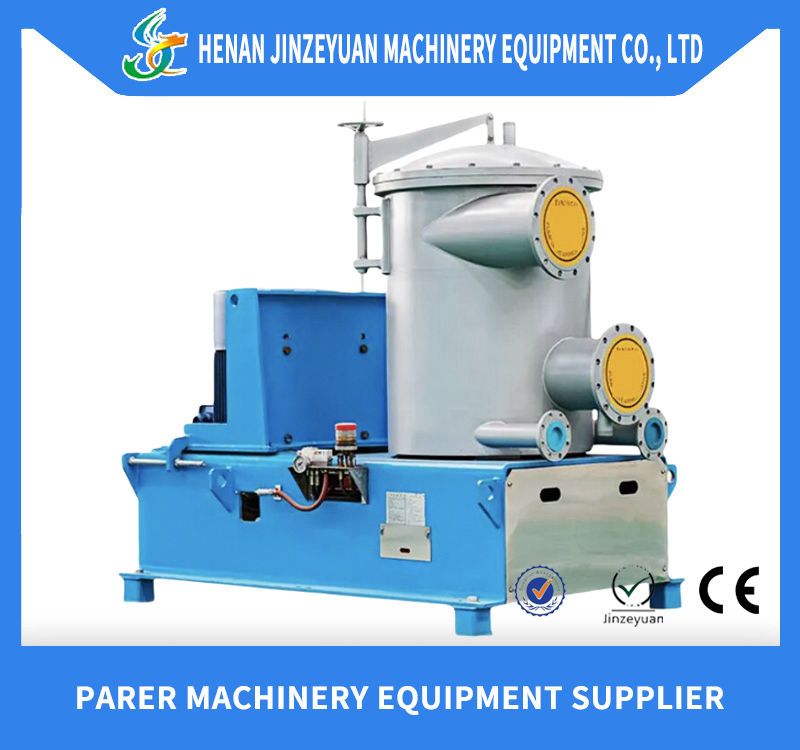

ZSM Series Low-pulse Approach Screen

DESCRIPTION：

　　Design Features　　With its special-designed,conveniently-installed and pulse-ad

RECOMMEND：

ORDER



TEL：+8613783914561

PRODUCT SERIES

Full set of paper machine equipment production line Main accessories of paper machine Paper machine accessories Pulp division equipment Wearing parts Boiler Corrugated paper machine Kraft paper machine Cultural paper machine Toilet paper machine Pulping Equipment GRM Series H.C. Refiner Deinking Equipment Disperser Equipment Cleaner Equipment Equipment of Approach System Bleaching Equipment Fiber Recovery Machine Reject Handling Equipment Screen Equipment Thickener and Washer Equipment

INTRODUCTION ORDER CASE

　　Design Features

　　With its special-designed,conveniently-installed and pulse-adjustable twin-propeller rotor,ZSM series low-pulse approach screen achieves its stable screening and the lowest pulse.

　　The special-designed corrugated screen plate can produce ideal turbulent flow near the screen cut.lt can keep a constant clearance between rotor and screen basket all the time. The rotor structure helps in purifying screen basket. All of these help in avoiding stopping up or blocking up and flocculating of the stock.

　　The structure of special-designed accepts pipe located under the screen basket and rotor helps in delivering the screened accepts flows to the accepts outlet from all sides of the screen. It results in stable and nonpulse delivery of accepts.

　　High precision processing and special manufacturing technologies help in preventing pulp lump from forming and the pulp consistency from fluctuating.
