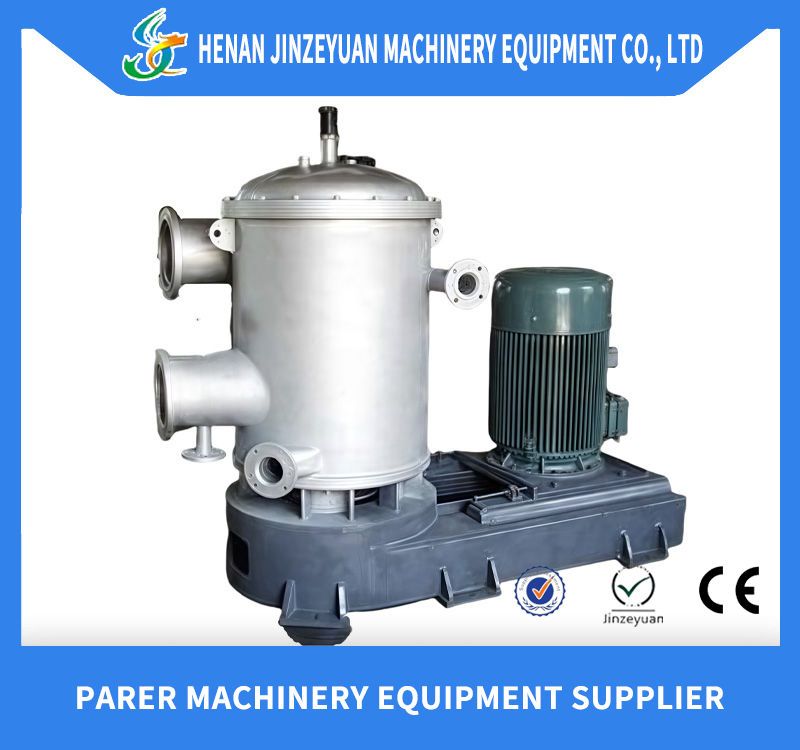

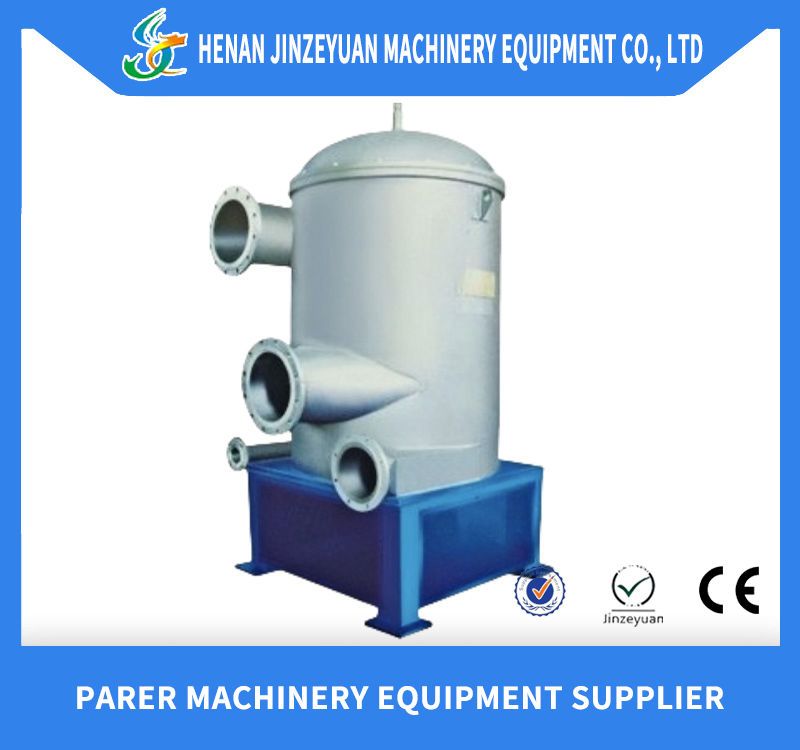

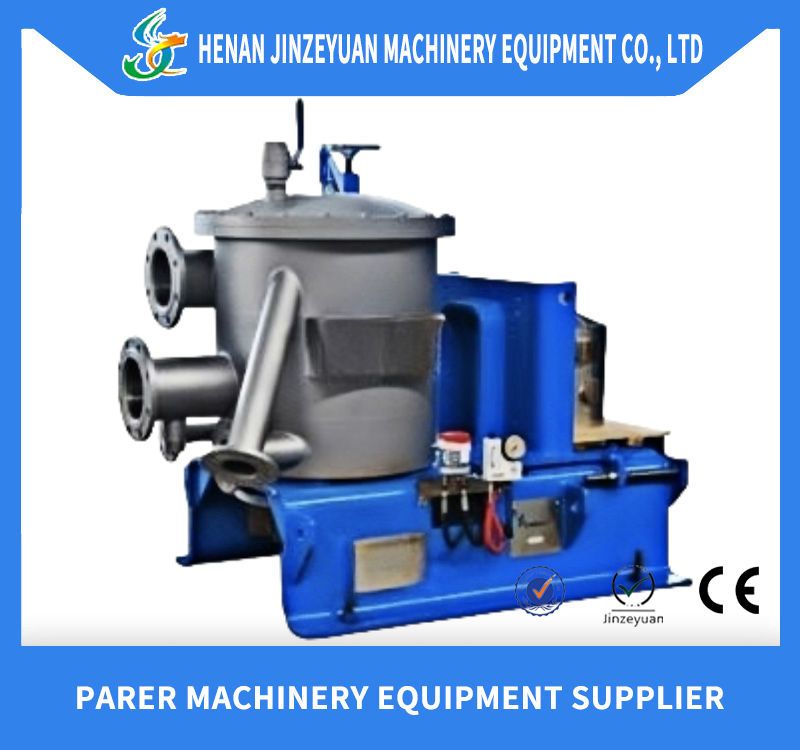

ZSR/Y Series M.C. Pressure Screen

DESCRIPTION：

　　Design Features:　　Good adaptation with high production capacity. It is applied

RECOMMEND：

ORDER



TEL：+8613783914561

PRODUCT SERIES

Full set of paper machine equipment production line Main accessories of paper machine Paper machine accessories Pulp division equipment Wearing parts Boiler Corrugated paper machine Kraft paper machine Cultural paper machine Toilet paper machine Pulping Equipment GRM Series H.C. Refiner Deinking Equipment Disperser Equipment Cleaner Equipment Equipment of Approach System Bleaching Equipment Fiber Recovery Machine Reject Handling Equipment Screen Equipment Thickener and Washer Equipment

INTRODUCTION ORDER CASE

　　Design Features:

　　Good adaptation with high production capacity. It is applied in wood pulp, straw pulp, bagasse pulp, waste paper pulp and mechanical pulp. It boasts its high capacity and efficiency.

　　M.C. coarse screen adopts energy-saving sword-shaped rotor, whose structure is developed with application of fluid dynamics.3Dstructure of rotor blades strengthen turbulence inside screen to promote rejects discharging ratio, as well as to avoid pulp thickening. It also slows down linear speed of rotor to achieve high capacity. Corugated basket which aim at better performance and high throughput is integrated with upflow design to save 30%-60% power consumption and improve screen efficiency.

　　N.C. fine screen is designed as bar-type slot screen. Slot size is different depended on various pulp and engineering conditions.Its LR rotor is design with wedge-shape blocks, which ensure flow speed and positive and negative pressure of pulp.
