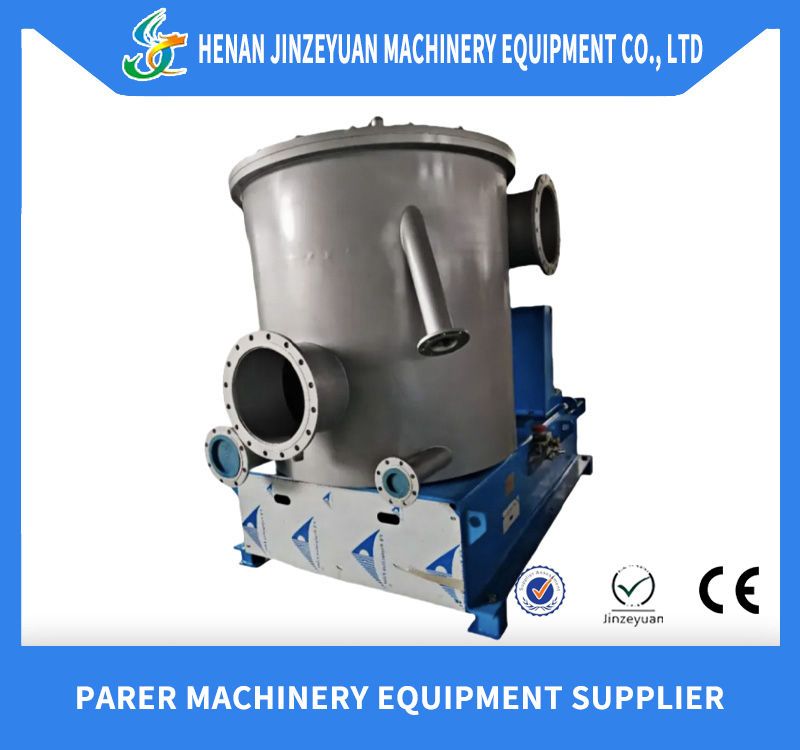

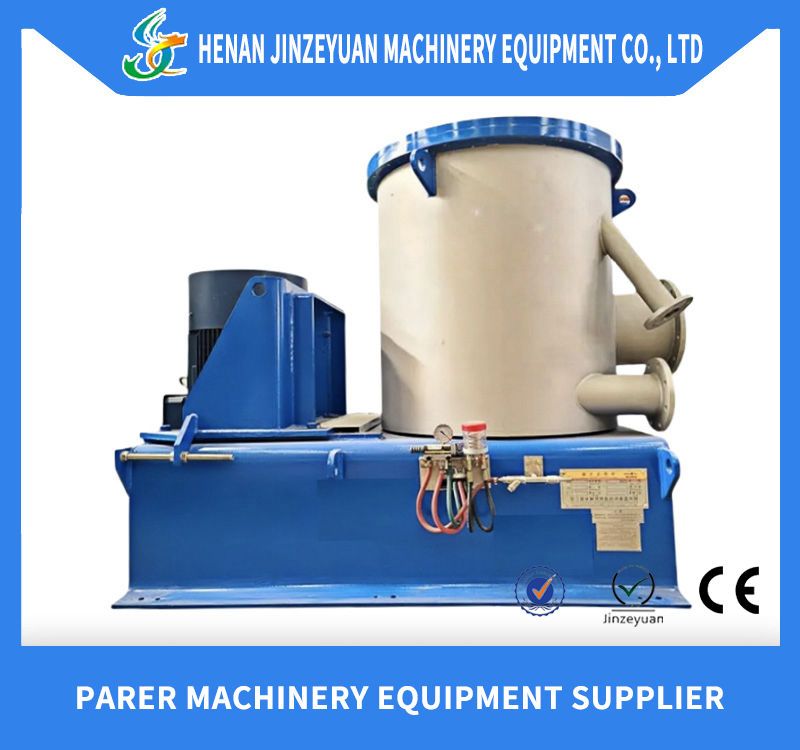

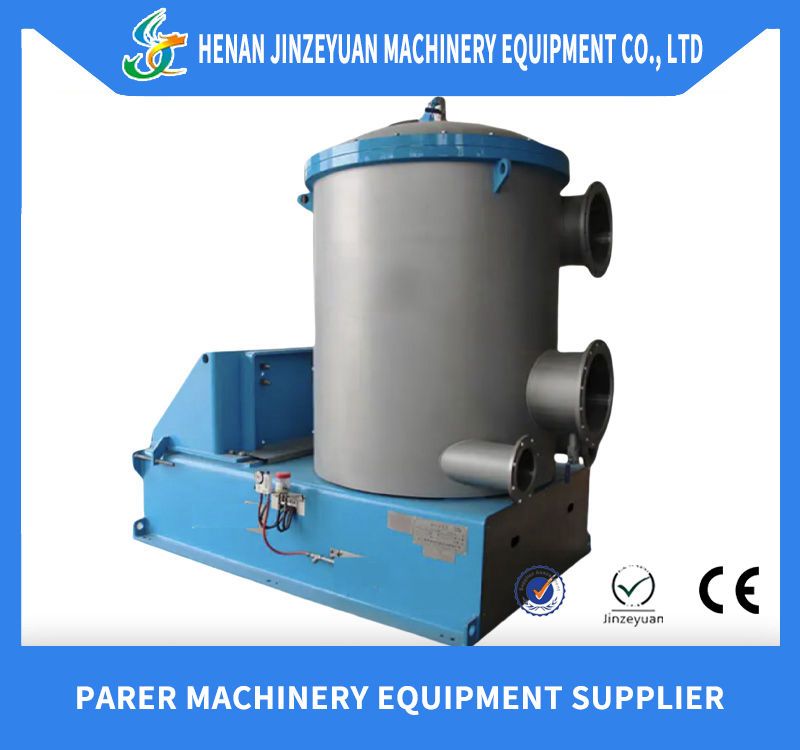

ZSR Series Drum Type Coarse Screen
ORDER
DESCRIPTION：
Design Features: It combines the highly efficient cleaning with screen. The s
RECOMMEND：
TEL：+8613783914561
PRODUCT SERIES
Full set of paper machine equipment production line
Main accessories of paper machine
Paper machine accessories
Pulp division equipment
Wearing parts
Boiler
Corrugated paper machine
Kraft paper machine
Cultural paper machine
Toilet paper machine
Pulping Equipment
GRM Series H.C. Refiner
Deinking Equipment
Disperser Equipment
Cleaner Equipment
Equipment of Approach System
Bleaching Equipment
Fiber Recovery Machine
Reject Handling Equipment
Screen Equipment
Thickener and Washer Equipment
Design Features:
It combines the highly efficient cleaning with screen. The stock floes into the cylinder along the tangent direction from bottom of the cylinder. Rotated by revolving basket, heavy impurities are removed from side reject outlet immediately and the stock is coarsely screened at the same time. The rotor is fixed at the end of accepts of in order to reduce the resistance of accepts passing through screen holes and increase the throughput per area unit of screen basket.It charges heavy impurities continuously or in batches. It dis charges light impurities continuously
