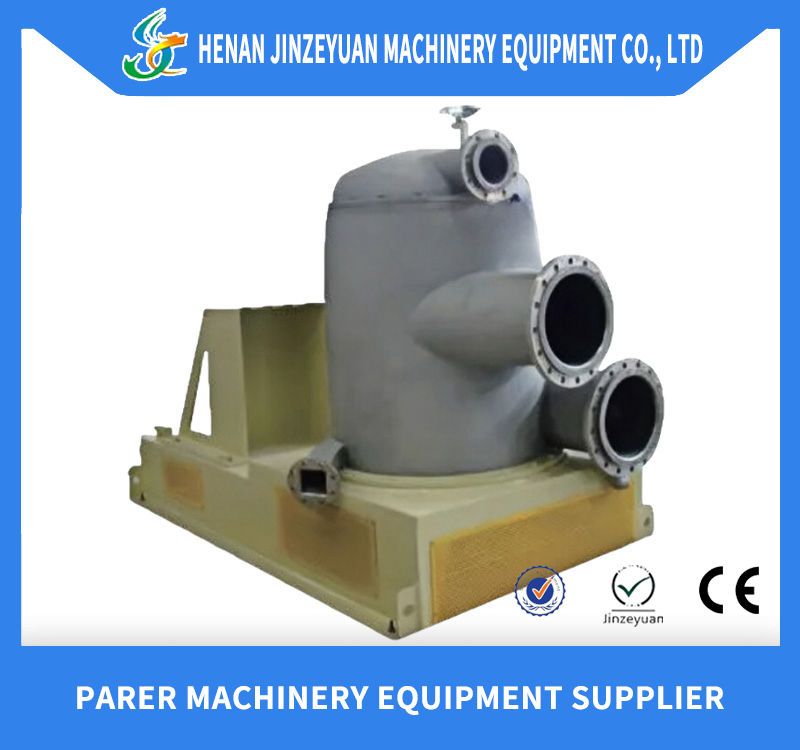

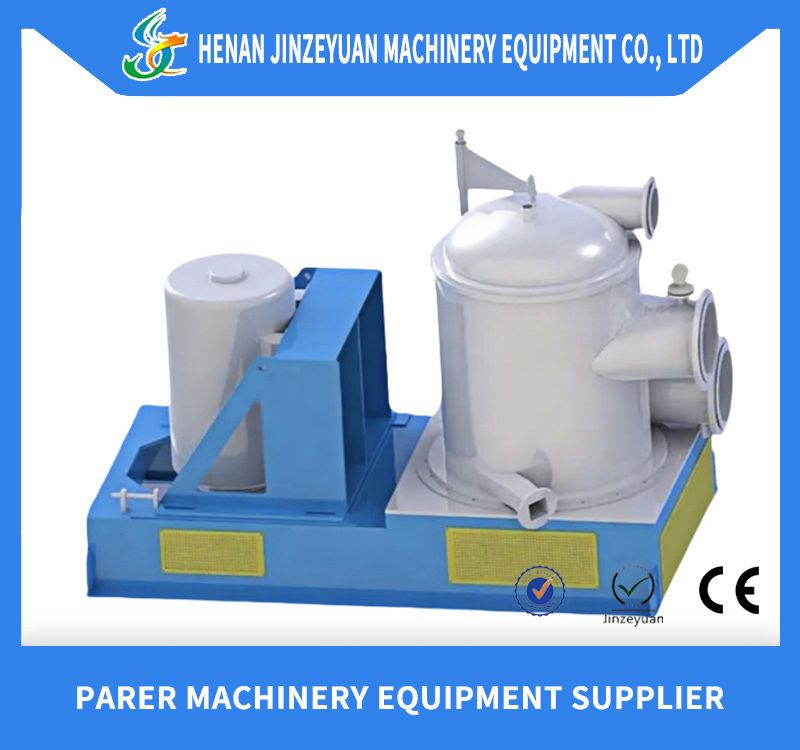

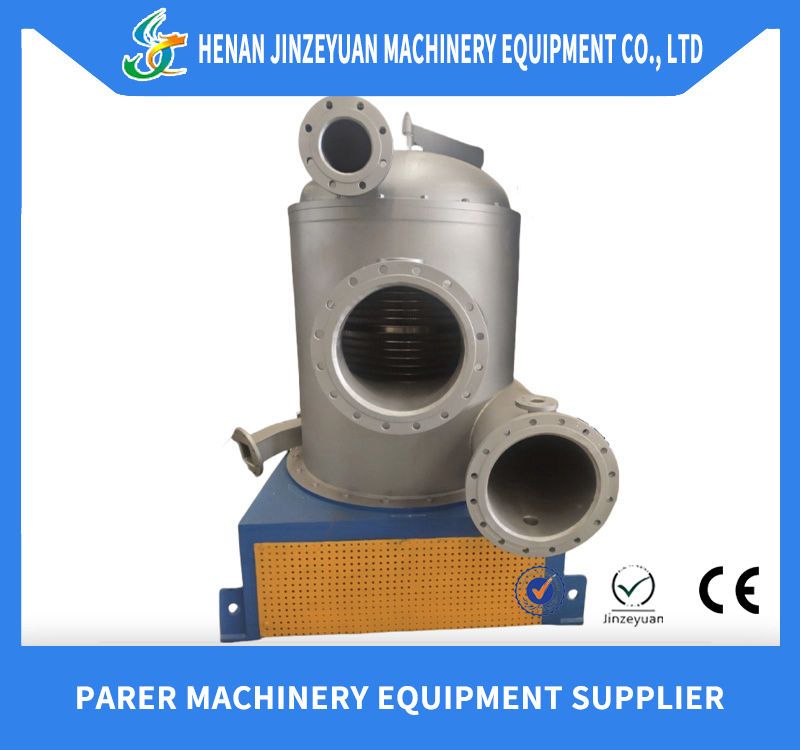

ZSN Upflow Pressure Screen

DESCRIPTION：

　　Application:　　Due to features of impurities in waste paper, the structure of t

RECOMMEND：

ORDER



TEL：+8613783914561

PRODUCT SERIES

Full set of paper machine equipment production line Main accessories of paper machine Paper machine accessories Pulp division equipment Wearing parts Boiler Corrugated paper machine Kraft paper machine Cultural paper machine Toilet paper machine Pulping Equipment GRM Series H.C. Refiner Deinking Equipment Disperser Equipment Cleaner Equipment Equipment of Approach System Bleaching Equipment Fiber Recovery Machine Reject Handling Equipment Screen Equipment Thickener and Washer Equipment

INTRODUCTION ORDER CASE

　　Application:

　　Due to features of impurities in waste paper, the structure of this pressure screen is specially designed as upflow screen, which is more suitable for coarse screening for waste paper.

　　Design Features:

　　Pulp floes into pressure screen from lower parts and flows out from the upper parts, which solving the problem of coarse impurities staying too long in the screen part and then easily mixed with clean pulp again,reducing the damage to rotor and screen basket, removing the turbulence which bring out vibration, shaking and movement strss of pressure screen,reducing appearance of consistency increase during screening.

　　The structure design helps in easily washing, adjusting, checking and removing rotor and screen basket. The screen can work with different design of rotors.
