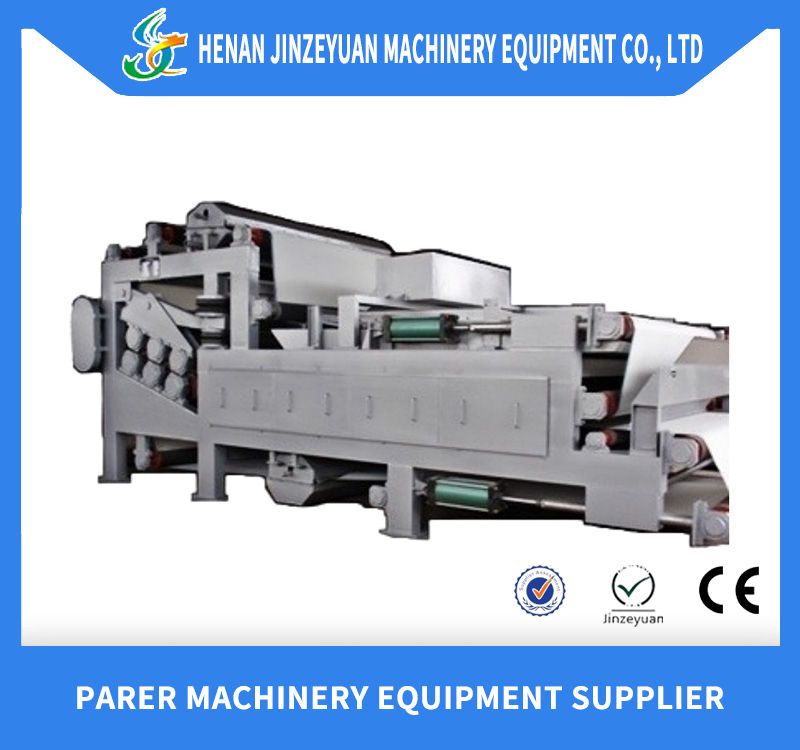

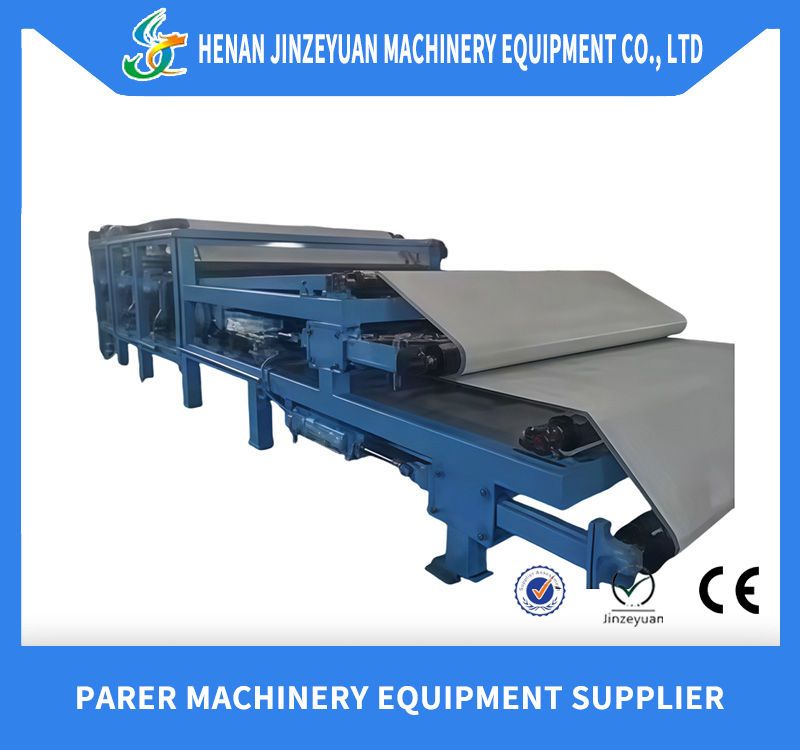

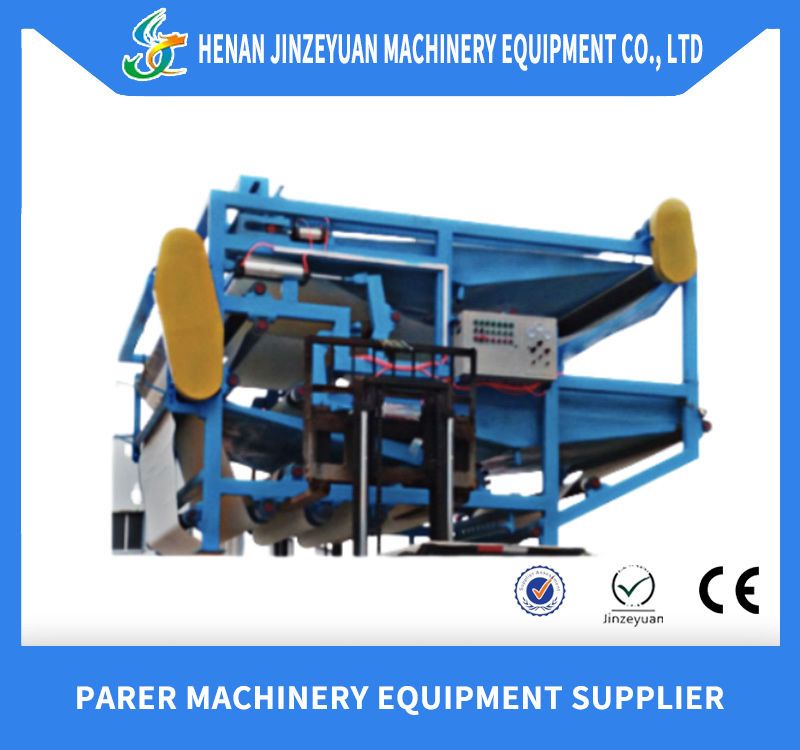

ZNS Series Twin-wire Press

DESCRIPTION：

　　Application:　　ZNS series twin-wire press is suitable for washing and thickenin

RECOMMEND：

ORDER



TEL：+8613783914561

PRODUCT SERIES

Full set of paper machine equipment production line Main accessories of paper machine Paper machine accessories Pulp division equipment Wearing parts Boiler Corrugated paper machine Kraft paper machine Cultural paper machine Toilet paper machine Pulping Equipment GRM Series H.C. Refiner Deinking Equipment Disperser Equipment Cleaner Equipment Equipment of Approach System Bleaching Equipment Fiber Recovery Machine Reject Handling Equipment Screen Equipment Thickener and Washer Equipment

INTRODUCTION ORDER CASE

　　Application:

　　ZNS series twin-wire press is suitable for washing and thickening of all kinds of pulps. It is widely used in dispersion system of the recycled paper stock, bleaching system of the mechanical pulp with high consistency and the refining system of coarse rejects,etc. It can also be used in the forming stage of wetlap machine as well as the washing and thickening of mechanical pulp and straw pulp with low freeness.

　　Design Features:

　　Adopt the wedge-shaped dehydration principle;

　　Group dehydration of the dewatering filter plate and pressing roll unit;

　　Long nip, increasing pressure drop, and high concentration ratio stabilize outlet consistency at 28-48%.

　　Adjust the wire speed automatically so as to control the dewatering amount and outlet consistency and ensure the outlet consistency meet the process requirements;

　　Unique structure, low power consumption(no vacuum is needed);

　　PLC control to keep the system steady, safe and reliable;

　　Low fiber loss.
