Application:

　　It is suitable for thickening various kinds of stock.

　　It presses pulp with fixed cylinder and floating pressurizing cylinder which are the same in cylinder wire diameter to reach the outlet consistency of 25% from 3-5% inlet consistency.

　　Design Features:

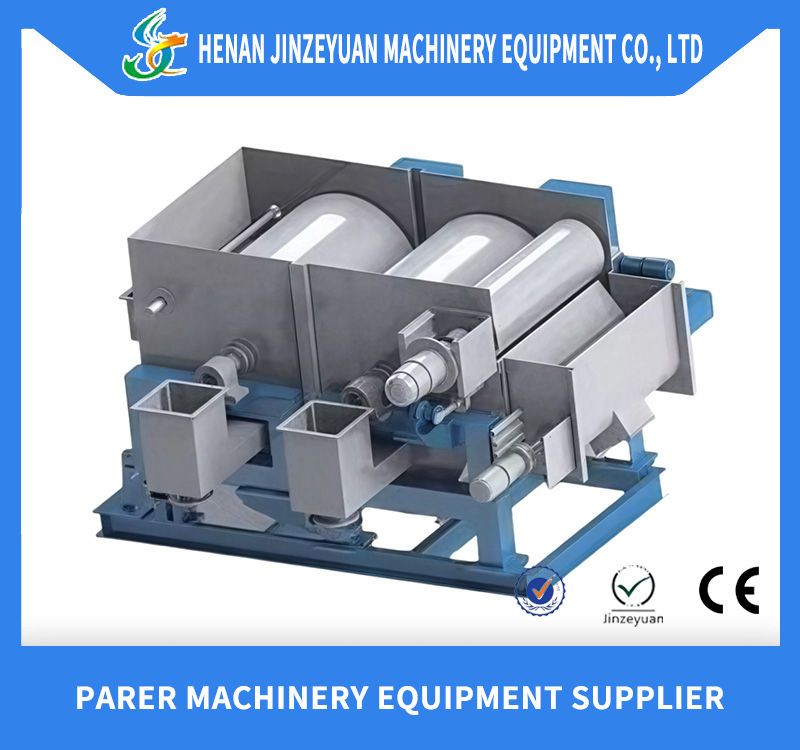

　　The fixed cylinder wire is installed on the fixed seat, while the floating cylinder wire is installed on the movable support seat and pressure pneumatic tire. Both cylinders are driven by worms and gears to rotated in reverse direction. Fears on both cylinders are connected with universal joints which are driven by the same variable frequency motor. The two wire with different mesh, as the cylinder wire rotates, press the pneumatic trie. Floating cage approaching the fixed cage, due to the pressure difference inside and outside the cylinder wire, after the natural dehtdration, the stock enters between the two cylinder wire for pressing and thickening,due to the different mesh of the two cage, the surface tension force is also different. After thickening the stock attached to the cage whose surface tension force is bigger then rotate outward falls into the discharging screw and is sent to the pulp outlet through the scraper installed on the cage.

　　It is an economical stock thickening equipment with compact structure design, low energy consumption, less space requirement.
