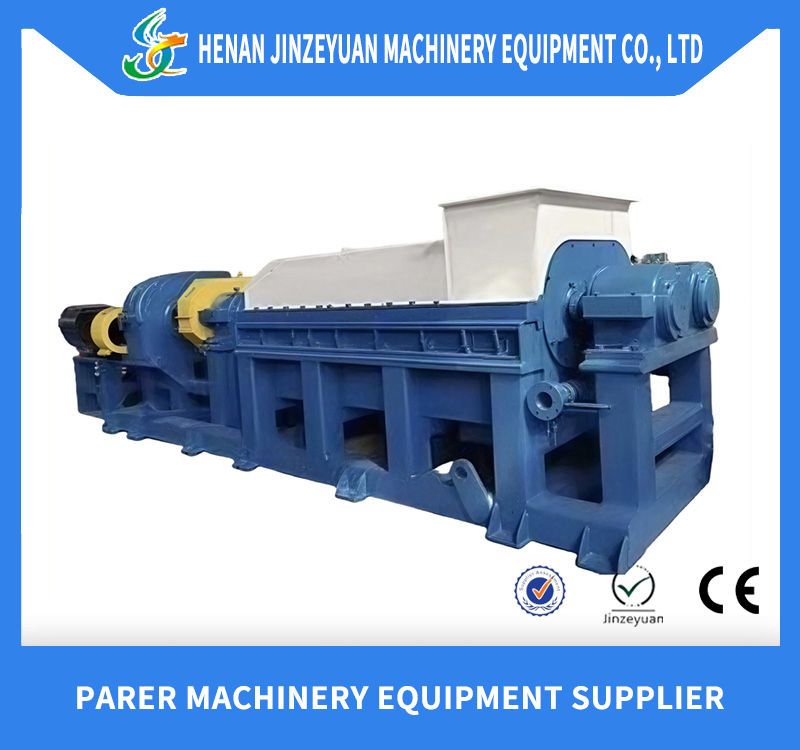

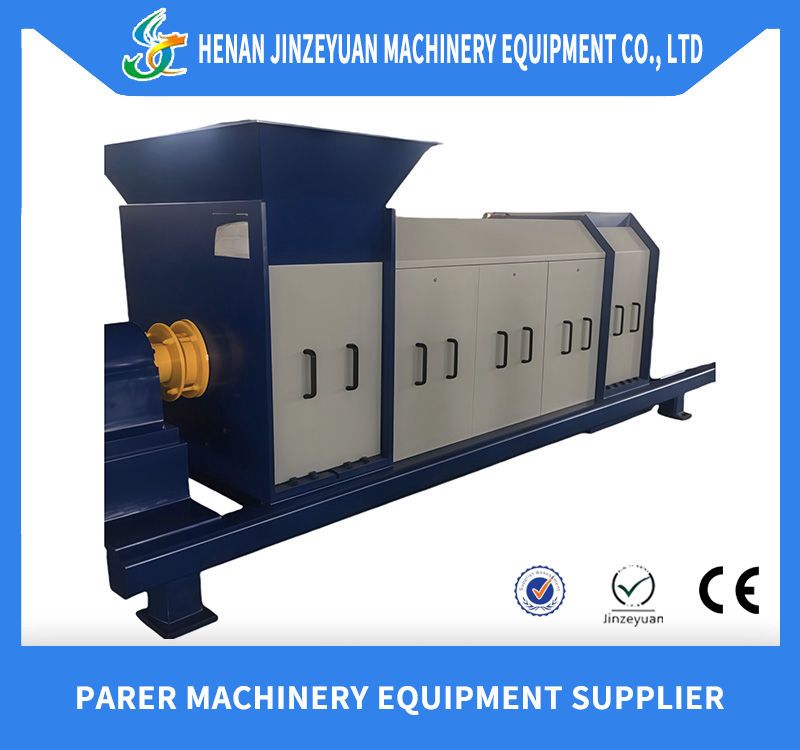

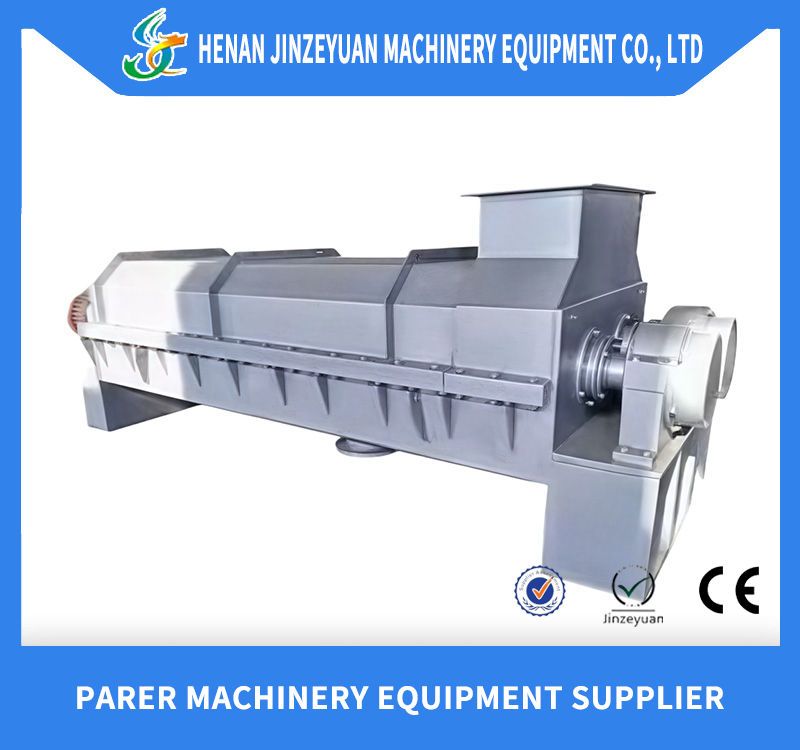

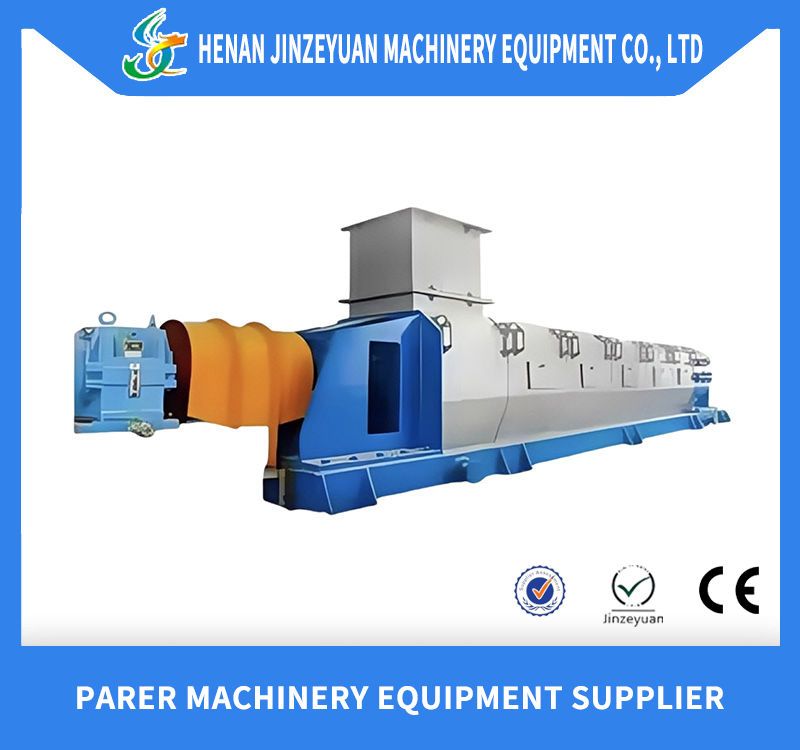

ZNV Series Screw Press

DESCRIPTION：

　　Application:　　ZNV series screw press is a washing and thickening equipment wid

RECOMMEND：

ORDER



TEL：+8613783914561

PRODUCT SERIES

Full set of paper machine equipment production line Main accessories of paper machine Paper machine accessories Pulp division equipment Wearing parts Boiler Corrugated paper machine Kraft paper machine Cultural paper machine Toilet paper machine Pulping Equipment GRM Series H.C. Refiner Deinking Equipment Disperser Equipment Cleaner Equipment Equipment of Approach System Bleaching Equipment Fiber Recovery Machine Reject Handling Equipment Screen Equipment Thickener and Washer Equipment

INTRODUCTION ORDER CASE

　　Application:

　　ZNV series screw press is a washing and thickening equipment widely used to press the stock mechanically in the high consistency section, which is suitable for waste paper pulp and dispersion system as well as washing and thickening of pulp with high consistency, and also suitable for washing and thickening sulfate wood pulp and ammonium sulfite straw pulp.

　　Design Features:

　　The screw press consists of press screw, upper and low screening baskets. Baskets are connected through bolts. The press body consists of inlet hopper, vat and end bracket. These parts are connected through bolts and position pins. It is easier to disassemble. The outlet of screw press has been installed with counterpress device. The outlet consistency can be reached by adapting the outlet size through air control press. The driving device consists of motor, gearbox and frequency transformer in order to adapt the capacity of screw press through changing the working speed of screw. With its anti-slip mechanism mounted on the screening baskets, the screw press can work more reliably.
